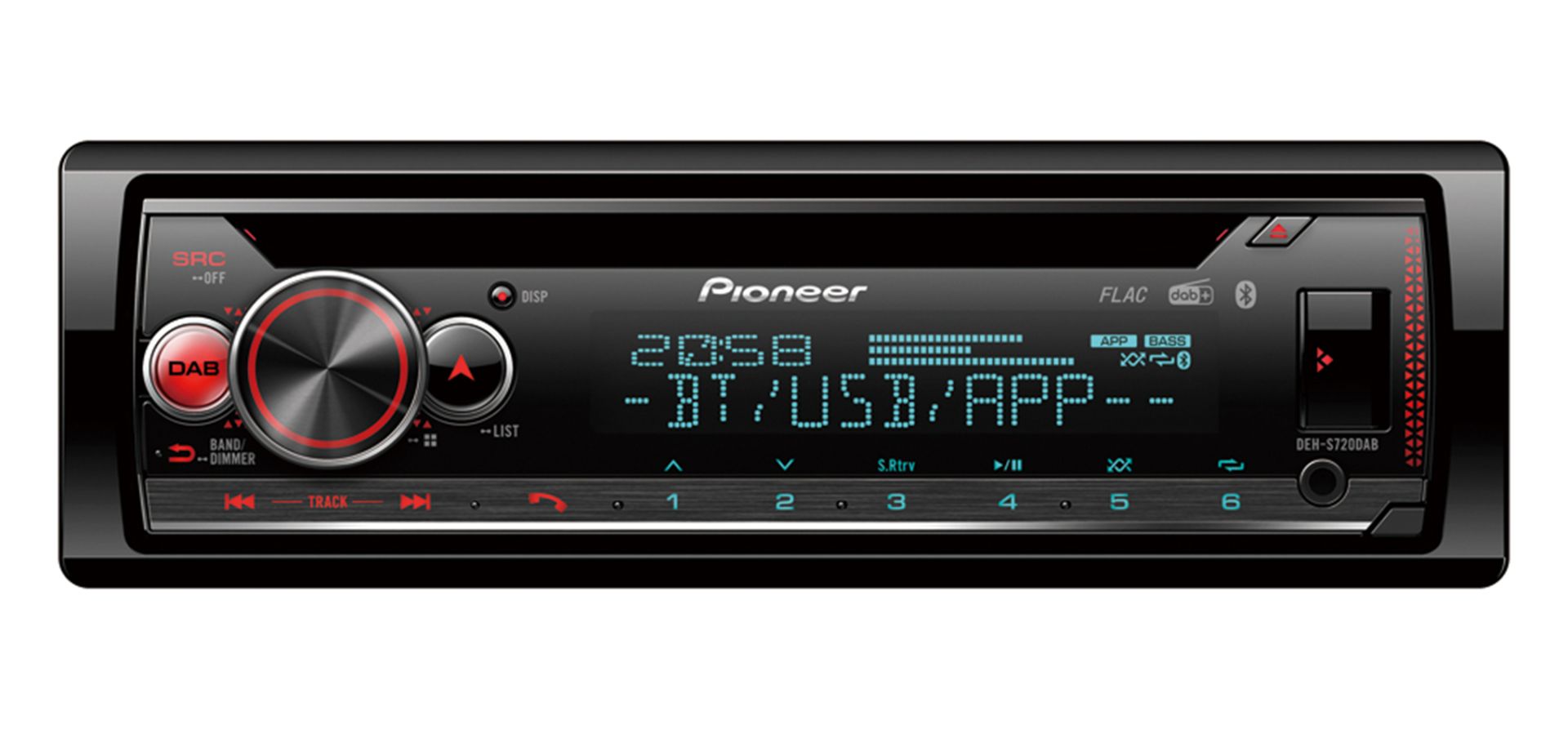

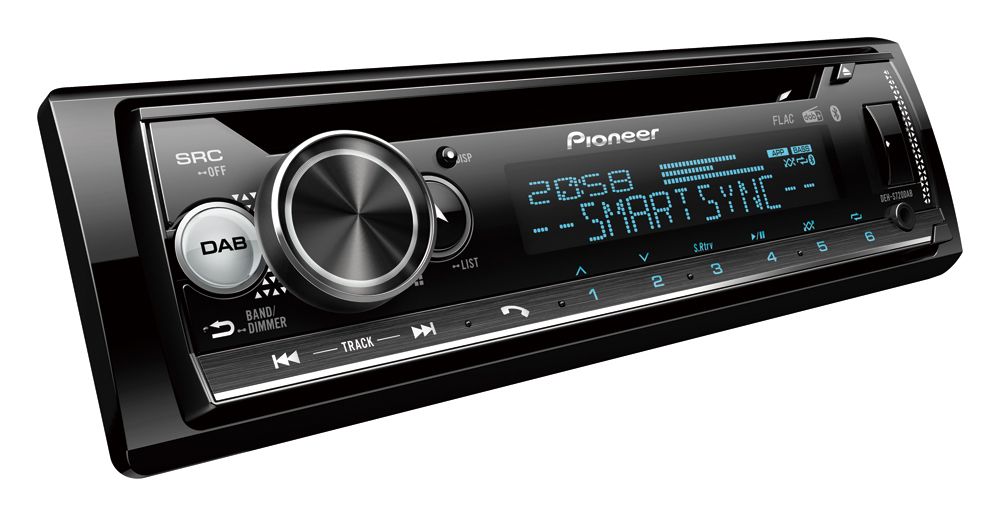

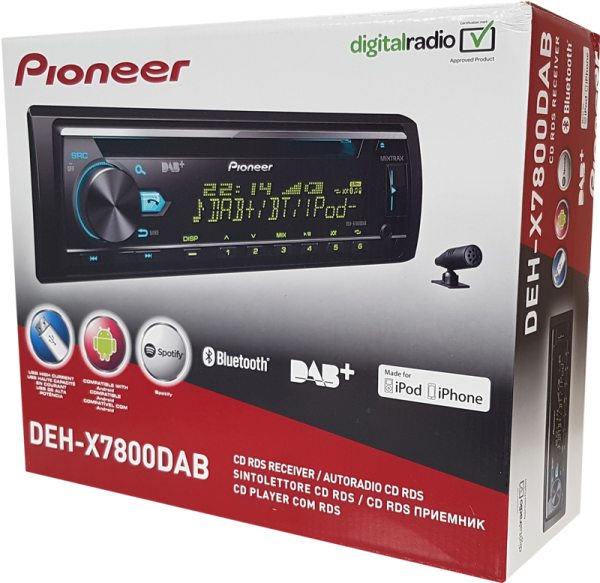

Pioneer DEH-X7800DAB


CD Tuner with Bluetooth, USB, DAB/DAB+ and Spotify. Connects to Apple iOS & Android – Pioneer DEH-X7800DAB

Made for iPod Works for iPhone MP3 CD AM / FM Radio DAB Digital RadioBluetooth handsfree USB Aux input Stalk Control 3 Preout
Pioneer Single DIN DEH-X7800DAB Packs A Mighty Punch For A Bargain Price

Pioneer’s range of head units is comfortably one of the largest and most inclusive commercially available, with a massive selection of both single and double DIN units to suit all budgets and cars.

The latest addition to the range is the DEH-X7800DAB, a stunningly built single DIN unit that boasts an impressive battery of features, is priced very reasonably, and has been designed to fit a wide selection of vehicles.

The DEH-X7800DAB’s single DIN design means that it’s eminently suited for fitment to a huge variety of cars, including those older, classic and retro vehicles, examples of which often leave a lot to be desired in terms of in car entertainment.

Its compact size belies the DEH-X7800DAB’s broad spread of abilities and features, many of which have traditionally only been associated with head units several price brackets above it. One of the unit’s most impressive aspects is its fully integrated DAB functionality, allowing for digital radio stations to be quickly and simply tuned into, with crystal clear reception at all times.

It even comes with Pioneer’s industry leading Time Shift feature, giving you the ability to pause and rewind live DAB radio transmissions. DAB radio is undoubtedly the future, and with rumours continuing to swirl of a complete digital switchover in the coming years, there’s a lot to be said for ‘future proofing’ your pride and joy before that time comes.

Far from a one trick-pony, the DEH-X7800DAB can also function as an all-purpose connectivity hub for both Apple and Android Smartphones, allowing for music to be streamed via Bluetooth. Bluetooth connectivity also allows for hands free calling, voice activation via Siri or similar voice recognition systems, and it can even be used to pair two seperate and distinct mobile phones.

Music is very much a DEH-X7800DAB specialty, with the aforementioned DAB radio functionality joined by the ability to stream music from popular apps such as Spotify and Deezer, and, for those that still like their music in a traditional, hard format, a built in CD drive and USB slot.

This raft of options give a huge amount of freedom when it comes to choosing which format to store and listen to music, all of it displayed in glorious, crystal clear format by LCD screen. It also packs a hefty audio punch, four 50 Watt MOSFET amplifiers ensuring that your music – be it streamed, stored, saved or read – is emitted in a suitably sharp and clear manner.

It should go without saying that, should you wish to upgrade your vehicle’s sound system at the same time, Pioneer is well placed to help.

The unit has been optimised to work with the OEM-fitted speakers and subs already in place and will therefore provide crisp, engaging sound right out of the box, but Pioneer’s position at the cutting edge of the in car and entertainment and speaker industries means that it’s equally capable of supplying with almost any kind of setup you desire.

The firm’s range includes the PRS line (among the finest money can buy), the TS-E series with Twaron Aramid fibre cone for exceptional vocal clarity, the TS-A (capable of handling extreme bass levels), and many more.

A key unit within Pioneer’s range, the DEH-X7800DAB is able to punch far above its weight in terms of sound quality and functionality, and those seeking a brilliant single DIN head unit could do a lot worse than investing in it.



Main Features:
  • Spotify
  • USB Input
  • Aux Input
  • CD Player
  • DAB
  • DAB+
  • Made for iPod
  • Front Panel – Fully Detachable
  • Maximum power input – MOSFET 50W x 4
  • 1-DIN
  • Button Illumination – Zone based RGB Colour Customisation (210,000 Colours)
  • Tuner – RDS FM/AM Tuner (24 preset stations)
  • DAB/DAB+ Digital Radio Tuner (Optional antenna CA-AN-DAB.001 required)
  • Digital Radio Tick Mark Approved product
  • Plays Via CD/-R/-RW:
  • MP3, WMA, WAV and AAC audio files
  • Plays Via USB:
  • MP3, WMA, WAV, FLAC and AAC audio files
  • Other music devices via the front Aux-In
  • Music Browser
  • Multi colour illumination
  • Accessories included –
  • Protective Case for Front Panel
  • Bluetooth Microphone included
  • Pioneer Bluetooth
  • Handsfree Telephony
  • Audio Streaming
  • Voice Recognition
  • Additional Bluetooth Features –
  • 2 Phones Full Time Connection
  • Automatic phone book transfer
  • Wide Band Speech
  • Wireless Audio browsing
  • Microphone Included
Apple Compatibility:
  • Works with iPhone
  • Works with iPod / iPhone
  • App Mode
Android Compatibility:
  • Compatible with Android
  • AOA 2.0
Screen Features:
  • Display Illumination – Wide angle VA LCD Display (1.5 lines, DOT-matrix)
  • Displays Cyrillic Characters
  • Illumination Effects
  • Brightness Control – 10 steps
Tuner Features:
  • Radio Data System (RDS)
  • PTY Search
  • Best Stations Memory (BSM)
  • Traffic Announcement
  • Auto Alternative Frequency Search
  • Auto/Manual Frequency Search
  • DAB/DAB+ Functions –
  • Time Shift function
  • Auto Tuning
  • ABC Search
CD Player Features:
  • Random Play
  • Last Position Memory
  • CD Text
  • MP3 Text Display
  • 13-Band Graphic Equaliser
  • High Pass Filter
  • Low Pass Filter
  • Direct Sub Drive
  • Source Level Adjuster
  • RCA Pre-Outs – 3 (Front, Rear, Subwoofer)
  • Advanced Sound Retriever
  • Advanced Sound Retriever Air
  • Manual Time Alignment
  • 3-Way Network Mode
  • Digital Direct Yes
  • FLAC
  • Wired Remote Input
  • Aux-in Front Aux-in
  • iPod/iPhone Direct Control
